How to set up Starline a64: main characteristics, advantages and disadvantages of the device

By purchasing such a device with a non-scannable dialog code, you get a number of functionality:

1. You can control your car from a distance using technologies such as GSM-GPRS, GPS-GLONASS.
2. Starline boasts of having an individual encryption key, which guarantees protection from code grabbers.
3. Radio interference is not a problem with a 512-channel narrowband transceiver.
4. Starline b64 impact sensors are capable of responding to body impacts and jacking. The zero point for the sensor is exactly where the vehicle owner stops, even if the car is tilted identically to the road. Sensors allow you to protect the wheels from removal, as well as from evacuation of the car. The instructions for use indicate that monitoring and disabling the sensors is carried out using a key fob.
5. Starline b64 is designed to operate in harsh climatic conditions and can withstand a temperature range of -50 to +85 °C. This ensures minimal energy consumption. A sufficient battery charge lasts for 60 days, which is achieved through the use of modern technologies.

1. The presented CAN-board allows for quick installation on modern vehicles that must be equipped with CAN buses.
2. All security functions can be performed using a mobile phone using GSM module technology.
3. The communication control function allows you to check whether the key fob is within the range of the transmitter.
4. The presented security option can be controlled using a key fob. It displays 3 security options: interactive identification, standard system, validator-immobilizer. The keychain itself is impressive in its appearance. The rounded shape will appeal to both men and women. And the rubberized buttons are easy to press and each without them is easy to guess by touch. The display has a pleasant blue backlight, all icons are clearly visible. The keychain is endowed with shock-resistant characteristics.
5. Protection against possible short circuits, the ability to program various functions - folding mirrors, adjusting seats for the driver. The system is equipped with flexible additional functions, the instructions show that they can be used without additional accessories - unlocking the trunk, central locking.

Description of the StarLine B64 alarm system

Starline B64 is a modern fourth generation car alarm from the Starline line of top models. This model has proven itself well on the market and is suitable for installation on almost all modern car models.

After installing Starline, the owner has the opportunity to additionally install GSM/GPS telematics modules, thereby expanding the security and service functions of the system and linking their phone to the system.

The B64 model has a set of individual encryption keys, which prevents thieves from hacking the car. The 512-channel transceiver ensures stable operation of the alarm system even in a city with huge radio interference. And if the car is used in extreme conditions, then this Starline model has proven itself to be the best. Starline B64 can operate in a temperature range from -50 to +85 degrees due to the high quality of materials and assembly.

The presence of power keys allows the car alarm to operate silently; short circuits or any other failure in the system are not allowed. At the same time, Starline does not consume a lot of energy, the battery will not discharge when the alarm is on. In security mode, it can work continuously for up to 60 days.

Another feature of this model is a three-axis accelerometer. In the event of any impacts, tilting of the car or other physical actions, Starline B64 instantly triggers, notifying the car owner. The sensitivity of the alarm can always be adjusted and the optimal option selected.

Starline b94 autostart how to enable

Only by choosing a reliable car alarm can the car owner not be afraid of car theft. But advanced security systems, such as Starline B94, can not only guarantee protection for the vehicle, but also significantly make life easier for the owner. This happens thanks to a large set of additional options, which include identification via Bluetooth, autostart according to various parameters, turbo timer and others.

Today there are several Starline 2Can 2Lin systems on the market, differing in the level of equipment. The basic configuration of Twage has a special module that allows the alarm to freely interact with all types of information buses.

The second option is Starline B94s 2can 2 lin Dialog. A special feature of this system is the presence of a GPS transmitter, which reveals all the capabilities of modern car alarms. In addition, such a system has a direct connection with ERA-GLONASS and is capable of calling for help in emergency situations. Optionally, some insurance agencies offer reduced CASCO prices for cars equipped with this alarm system.

Features of Starline B64

Anti-theft functions:

• blocking door locks;
• hood and trunk lock control;
• blocking the engine, simulating its malfunction;
• When the alarm is triggered, the headlights, hazard warning lights and sound signal turn on.

The manufacturer took into account all the wishes of car owners and equipped this car alarm model with the following comfort functions:

• pre-heater control;
• automatic seat adjustment and folding steering column;
• automatic turning on of headlights when starting to move, triggered after releasing the brake pedal or handbrake;
• When the security mode is turned on, the car hatch automatically closes and the side mirrors fold.

Vehicle protection is provided using various sensors and relays. It is possible to silently turn on and off the alarm, set the security mode even when the engine is running.

User manual

Full use of all options is allowed only after binding the key fob.

Guide to linking the keychain:

1. Turn off the ignition with the key in the Off position. With the system turned off, click on the service button seven times, then set the key in the lock to the ACC position. The siren speaker will play seven beeps, this indicates successful entry into the binding mode.
2. Simultaneously click on the first and second pager keys. The siren speaker will play one sound pulse, and one melodic signal will be played by the remote control beepper.
3. The previous paragraph is repeated for programming each communicator. The time interval between binding each subsequent remote control should be no more than five seconds.
4. When the communicators are paired, you need to exit the programming mode. To do this, turn off the ignition. The car's lights should blink three times.

How to disable?

If you were able to turn on the security, but cannot turn it off using the key fob, you can disable the security mode using the service button. For emergency shutdown, the consumer must know the password.

Procedure for turning off the alarm:

1. The door lock is opened with a key, the alarm siren will start playing alarm pulses. If the protective mode was activated without using the communicator, the vehicle's lights will blink four times.
2. Activate the ignition by inserting the key into the lock and turning it to the ACC position. Click on the service key several times. The number of presses must correspond to the first digit of the code. If it is 8, then the key is pressed eight times. When using a unique password, the alarm will disable the protective mode and the lights will blink twice. If the password is two-digit, then after entering the first digit the ignition is turned off.
3. The ignition is turned on again. The second digit of the password is entered into the service key. If the code was entered correctly, the protective function will be deactivated and the lights will blink twice. If a three-digit password is used, the ignition is turned off.
4. The key is again set to the ACC position, and the third digit of the password is entered.

Malfunctions that may require emergency shutdown of the alarm are described in the Falcrums channel video.

Is there auto start?

Initially, the Starline A64 alarm system does not have the option of automatic engine start. But it can be implemented by installing an additional special module from Starline M21 or M31.

Installation of these devices can lead to the following consequences:

1. Starting the power unit will only be possible using a smartphone application, as well as by calling and sending messages. Using a standard communicator will not allow you to configure this function.
2. There may be nuances regarding engine blocking. The consumer may have to block the ignition zone with the M21 or M31 module. The same goes for restoring blocked electrical circuits. It is almost impossible to perform the correct setup yourself; you will have to contact qualified installers.
3. Locks performed by the Starline A64 anti-theft complex will be canceled using the TX cable, which is blue. It is possible that the firmware of the M31 module and the A64 microprocessor unit will be different. As a result, you can try to solve the problem by updating the software. However, this procedure may be meaningless due to hardware incompatibility.

Car alarm system StarLine B64

The price of Starline B64 is approximately 9500-10000 rubles. If you purchase directly from the manufacturer, the cost is only 9,350 rubles. But you will have to pay an additional 5,000 rubles for installation. The security complex includes:

• central block;
• two key fobs with two-way communication with and without an LCD display;
• a set of wires and cables required for installation;
• additional relay;
• siren;
• transceiver module;
• service button;
• Light-emitting diode;
• warranty card;
• installation and operating instructions;
• Reminder for the user.

How to install?

Installation Guide:

1. The microprocessor module is mounted inside the car. It is not allowed to be installed in the luggage compartment or under the hood. It is advisable to choose a hidden place for installation. For example, behind the control panel or in the free space behind the center console.
2. Depending on the chosen installation location, the plastic lining around the steering wheel or dashboard is dismantled. There is a temperature controller inside the microprocessor unit, so the device must be installed away from heat sources. If the unit may be exposed to moisture at the installation site, it must be installed with the connector facing down to prevent liquid from getting inside. Secure the device with screws or ties to prevent it from vibrating.
3. The antenna module is fixed on the inner surface of the windshield (it must first be washed and degreased). There should be metal parts of the body no closer than 5 cm from the transceiver, this will ensure the best range of the communicator. Inside the antenna module housing there is a tilt and shock controller. To prevent the controller from operating without reason, it should not be placed on the plastic lining in the passenger compartment.
4. An LED indicator is installed on the dashboard or center console. Its installation must be done so that when blinking the light bulb is visible from the street.
5. A siren is being installed in the engine compartment. It should not be installed near the cylinder block or sources of moisture. The horn of the device is located downwards, this will prevent the accumulation of moisture inside. Choose a place for installation so that there is no access to the siren and its electrical circuits from under the bottom of the car. If you purchased a siren with a built-in battery (autonomous), then during installation you must ensure unobstructed access to its lock.
6. The service button is mounted in the cabin. It is advisable to hide it; to do this, the key can be disguised as one of the bundles with standard wiring.
7. After installing all the components, the electrical lines are laid under the plastic upholstery. When laying, please note that electrical circuits should be placed as far as possible from possible sources of interference. These include high-voltage cables, ignition coils, electronic devices, etc. After installation, wires should not come into contact with moving structural elements.

Photo gallery

General block connection card

The diagram and assignment of contacts on the X5 connector
Channel Autosound Base showed mistakes that car owners can make when installing anti-theft systems.

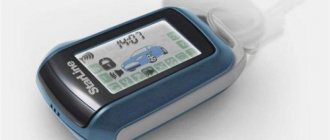

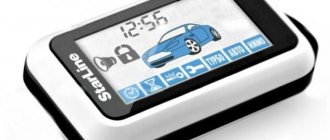

Keychain for car alarm control StarLine B64

The Starline B64 car alarm keychain amazes customers with its appearance. This is the most successful keychain in the Starline line of models. The rounded shapes of the key fob allow the car owner to confidently hold the key fob in his hand, and it doesn’t matter whether the car owner is a man or a woman, everyone will like the appearance. The key fob has four rubberized buttons. Even without looking at the key fob, you can easily and accurately turn on or turn off the alarm. The keychain body is made of dark blue plastic. But this plastic can withstand a fall even from a height of 2.5 meters. The key fob display is designed in such a way that it does not irritate with its light in the dark. The backlight is soft, with a blue tint. The image is clear and understandable. Some people, when purchasing this car alarm, do not pay attention to its reliability, but first of all look at which key fob and how convenient it is to use. If you wish, you can also purchase a cover for the keychain to keep the keychain in its original form for as long as possible. And for this budget model, the keychain looks very solid, you don’t want to let it go.

Advantages and disadvantages of the Starline B64 alarm system

The main advantage of Starline B64 is its simplicity and ease of use. Comparing with other budget options, this alarm system is the most optimal. The price-quality ratio allows all car owners to purchase this model without any problems. If there is an attempt to break into or damage the car, the sensors react instantly, notifying the car owner. The manufacturer also provides a three-year warranty on its products. This model can be easily configured using a computer by connecting it via USB.

The disadvantages of the model can only be discovered after improper installation or operation. Sometimes users have a problem when there is a delay of a couple of seconds when the alarm turns on. But this is due to noise interference on the airwaves.

Key Features

Car alarm Starline A64 has expanded functionality:

1. Possibility of implementing automatic car engine start with additional connection of M21 or M31 modules. Enabling this option is possible on vehicles with a diesel or gasoline injection system, regardless of the type of gearbox. It can be configured automatically or can be started by the car owner’s command, which is sent from a pager.
2. Models of security systems Starline A64 Dialog and 2CAN allow you to determine the coordinates of a vehicle using GPS and GLONASS satellites. This feature is optional; for it to function, the owner of the signaling system must additionally install a GSM module (preferably from the manufacturer Starline). These models differ from each other in that the second has a digital CAN interface. It allows you to connect the protection system to the corresponding bus with minimal interference with the standard wiring.
3. Availability of a pre-heater control system. Diesel power units are equipped with such devices.
4. Possibility of automatically changing the position of the driver's seat. This option can only be turned on on cars that are equipped with an electronic control system. Additional flexible channels are used to control devices.
5. Function of automatic activation of low beam headlights when driving. The user can configure the operation of the optics when lowering the handbrake or when squeezing the brake pedal.
6. Ability to control the anti-theft system using a smartphone. This is allowed when installing an additional GSM module. Using the device, you can configure the transmission of information to the phone about the security status.
7. Low power consumption feature. The car battery can retain its charge for 60 days when the alarm is on.
8. The use of power switches (PS), the use of which allows for silent operation of the control module. This feature allows you to provide reliable protection of contacts from possible short circuits. SK is a proprietary development of the company that allows reducing the risk of fire hazard.
9. Slave mode. With its help, the car owner can control the anti-theft system using the remote control from the standard central locking system. The devices must first be synchronized.
10. Possibility of connecting additional controllers to protect the interior. This refers to volume and tilt sensors. The control unit has special connectors for their connection.
11. Blocking the power unit. For this purpose, special relays or digital devices can be used. The latter are connected additionally.
12. Activating security for a vehicle with the engine running. There is no need to leave the key in the ignition.
13. Anti-robbery option. Its essence is to block the engine if a robbery occurs on the car. In accordance with the readings of the brake sensors or at the command of the owner, the power unit will stop and the vehicle will not be able to continue moving. The stop is made after 30-60 seconds, during which time the car thieves usually leave the crime scene to a safe distance for the user.
14. Availability of an automatic monitoring system for the operation and condition of sensors. When faulty devices are detected, the microprocessor module disables them, sending a warning to the car owner.
15. Saving information in memory about triggered alarm modes with the ability to view them later.
16. The ability to remotely disable controllers and regulators when machine protection is turned on. Only the warning zones of the sensors can be deactivated.
17. The presence of two different sound modes of the pager, as well as a vibration alert option.
18. Blocking pager buttons.

The AutoAudioCenter channel spoke in detail about the functionality of the Starline A64 anti-theft systems in its video.

DIY car alarm installation StarLine B64

After purchasing an alarm system, the buyer is offered an installation service. The cost is approximately 5000 rubles. But you can be sure that the system will work reliably. If you have time or want to save money, you can install Starline yourself. You just need to download and carefully read the instructions. If you follow the instructions strictly, then no problems should arise during installation. But, as practice shows, it is better to spend money for installation at a car service center than to waste time and your own nerves.

The Starline B64 car alarm is the best option for those who want to buy a budget model without giving up solidity and prestige. The price-quality ratio is at the proper level; this model is ideal for those who want to provide reliable protection for their car.

Advantages and disadvantages

Advantages of Starline A64 anti-theft systems:

1. System reliability. With proper connection and configuration of all elements, the consumer receives a complete complex that can provide maximum protection for the machine.
2. High operating radius of the communicator. Even if there is interference in the area, the range of operation of the pager will be quite large.
3. Ease of installation and configuration. In the technical manual, the manufacturer described all the nuances regarding the installation of signaling elements and setting parameters. An inexperienced consumer, taking into account all the advice, will be able to independently install and configure the system.
4. Multifunctionality. The alarm system has many useful security and service options.

Flaws:

1. Communicator. Despite the shock-resistant case, according to reviews, the control buttons on it often fail. You will have to repair and replace the keys.
2. It may be difficult to configure the alarm if the Slave mode is used.
