Sometimes the time readings of the Scher Khan car alarm models Universe, Magicar, Logicar go astray. This happens for the following reasons.

weak power supply. During operation, the battery gradually discharges, losing its capacity. The clock readings are off;
recent battery change, after which the time is automatically reset;
poor contact contact. Inspect the working connections, if necessary, bend them;
manufacturing defects;
short circuit caused by the remote control getting into water or other liquid.

You can set the clock on the anti-theft system key fob yourself by following simple instructions.

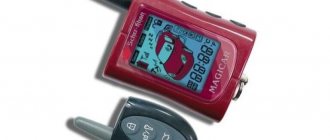

Find out how to disassemble the Scher Khan Magicar keychain.

Autostart based on temperature and voltage

Since Sherkhan Magikar 5 (in the generally accepted meaning) does not allow you to enable autostart based on temperature, only limiting periodic startup is possible. In other words, the car will try to start every 2, 4, 8 hours if the following conditions are met:

the temperature at the installation point of the central unit is lower than the specified threshold;
The battery voltage is lower than the specified threshold.

You can set one of these conditions, or two at the same time. Their programming is described below.

How to disable autorun

After the car owner no longer needs auto start on the alarm, this option can be disabled. You must select the appropriate function on the key fob screen and switch it to inactive status. After this, automatic motor activation will be switched off.

If necessary, you can configure the alarm using other parameters. To do this, you will need to repeat the steps performed before disabling the option.

Setting up autorun. Scher-Khan Logicar 4 / 2

979 messages

Attention! It is not possible to automatically start the engine based only on temperature or only on low battery voltage. The condition for enabling timed triggering is mandatory.

Attention! During programming, the system must be disarmed and the ignition in the car must be turned off. The “Hands Free” mode is also disabled and the door is preferably open so that re-arming does not occur during programming.

Alarm Settings

To change system settings, use any of the previously registered key fobs. The car must be disarmed and the ignition must be turned off.

The system has two separate settings menus. The first menu is entered by pressing and holding buttons 1+2, and the second menu is entered by pressing and holding buttons 1+4. After the sound signal, you need to select the function number by pressing button 4 and make a short pause, after which the machine will sound the number of the selected function with siren signals. Using buttons 1,2,3 and 4 you can then set the desired function value.

In menu 1 the following functions are associated with autorun operation:

12: engine warm-up time at auto start, 5, 15, 25 or 45 minutes for settings 1 to 4, respectively.
13: Timer start type. In value 1, the launch occurs every 24 hours according to the time specified on the key fob, in values 2,3 and 4 - every 8,4 or 2 hours from the moment of activation.
14: limit the number of auto-starts, maximum 5, 7, 16. When set to 4, the number of timer starts is not limited.
16: autostart reservation type. In option 1, ignition interception occurs every time the ignition is turned off, but with a noticeable pause, during which the engine may stall. Option 2 introduces an additional condition: the doors must be closed. If you do not need auto start reservation at a specific moment, just open the door first and then turn off the ignition. There is also a delay before the ignition is intercepted. Therefore, the only adequately working backup option on Magicar 5 is manual reservation (function value 3), when you need to press and hold button 2 of the key fob before turning off the ignition.
17: way to complete the algorithm. In option 1, the car will stall after closing the door without arming, in option 2 - similarly, but with automatic arming. In option 3, the engine will stall only after manual arming. This is the only method you should use.
20: limitation of periodic starts based on battery voltage. In option 1 it is not set, option 2 sets a threshold of 11.5 V - until the voltage drops below, the start will be blocked. If you select to run every 24 hours, the setting is ignored.
21: autostart temperature threshold. In option 1 it is not installed, in options 2-4 the temperature is set to -15, -25 and 60 degrees, respectively (the last option is for operating the air conditioner in the heat).

In menu 2 autorun settings you need:

12: minimum starter rotation time, 0.6, 0.8, 1.2 or 2 seconds. It should be set to the possible minimum, since there is no automatic starter cut-off, as with alarms with a tachometer input.
13: maximum starter rotation time, 2, 4, 8, 10 sec. It should also be as low as possible in order to preserve the life of the starter and flywheel ring gear.
14: increase in starter rotation time during subsequent starting attempts after an unsuccessful one. In option 1, each new start attempt lasts 0.2 s longer than the previous one, in option 2 – by 0.4 s. Option 3 sets the fixed scroll time set by function 12.
15: pause between turning on the ignition and attempting to start, 2, 4, 8 and 10 seconds. The first two options are relevant for gasoline engines, options 3 and 4 – for diesel engines with glow plugs.
16: pause after stopping the engine until the ignition is turned off. 0, 4, 15 seconds or 4 with restart attempts.

The remaining autorun settings are related to the connection diagram to a specific car and should not be changed by the user.

Sherkhan Logicar 4

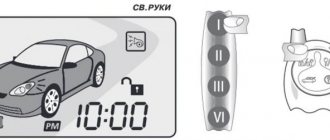

You can set the time on the remote alarm control key fob yourself by following these steps.

Press and hold the second and third buttons of the remote control for 2 seconds until the Pro9 picture lights up.
Click the first key once. The key fob will go to the time setting menu. The numbers will flash on the display.
Use the first key to adjust the clock. Button 2 – for setting minutes.
Once installation is complete, hold down the second and third keys for two seconds. There will be an exit from regulation.

PROMOTION: SALE OF NEW CAR 2021 PRODUCTION

Setting the time on the Sherkhan 9 alarm remote control

Follow the procedure exactly and you can easily set the clock of the Scher Khan 9, 13, 14 anti-theft system.

To set the time, enter programming mode. Hold I and III. Press duration is two seconds. Picture on the keychain. Pro9 will appear on the screen and a remote beep will sound.
Switching to the time setting occurs automatically. The picture on the keychain depicting the dial will begin to blink.
Use the I key to set the hours.
II Set the minutes.
Press I and III for two seconds, the regulation will exit.

Why it doesn't work and what to do

If all setup steps were completed according to the instructions, autostart on Sherkhan Magikar 5 always works clearly according to the established scheme. If a failure occurs, and after setting up automatic startup, the system does not perform the necessary actions, you need to look for the reason. To do this, you don’t have to contact a service center; you can do it yourself:

If the motorist has made a reservation, but the system does not activate, the contacts of the safety device should be checked. The reason for the breakdown of the Sherkhan alarm system may be their oxidation. The safety device is located in the main module power supply circuit.
Incorrect operation of the standard blocker. In the control relay, you need to check the contact elements for sticking.
Continuous activity of the diode element. Such a breakdown may occur due to the activated Valet service mode. To resume operation of the Sherkhan signaling, it is necessary to disable the service mode.
Autorun functions are not configured correctly. To solve this problem, you can use a reset of all user settings to factory settings.

In addition, errors in the operation of the device may occur for the following reasons:

Often the problem is that when autostarting, the engine stops working after only 1-2 minutes. In this case, you can start everything using the key in standard mode. The cause of such failures is most often a breakdown of the five-pin relay. You can find this part in the microprocessor module.
The battery is in a discharged state. If this problem is resolved, the launch will be activated.
Low temperature. In some cases, auto start is blocked due to critical frost outside the vehicle window.
Malfunction of some machine parts that are responsible for activating the motor.

To reconfigure the start of the Sherkhan Magikar 5 alarm, the manufacturer suggests resetting all settings to factory settings. The system has 2 menus (1 and 2):

Includes options such as door open warning, panic mode and other security alarm functions.
Adjustment of auto start time, duration of warming up of the car.

If you need to get rid of user-set autorun settings, you need to reset menu number 2 functions to factory settings. Do this in the following order:

You should enter programming mode. For this purpose, press buttons 4 and 1 for 2 seconds. After this action, the sound of a siren should be heard, and the alarm system will give 1 light signal. If this happens, then the user did everything correctly and step 1 is completed.
Key 3 is briefly pressed 3 times. After each press there is a siren sound and a light signal.

After completing these steps, all user settings will be deleted, and the Sherhan Magicar 5 autostart options will be returned to factory settings.

Sometimes a car owner is unable to configure the auto-start of the Sherkhan Magikar 5 alarm. This may occur due to insufficient knowledge. It happens that it is not possible to troubleshoot problems in the Scher Khan alarm system that is already turned on. In both cases, it is better to contact a service center for help. A team of professionals will be able to identify and fix the breakdown as quickly and efficiently as possible.

Key fob programming

Although “falling off” key fobs are mainly the prerogative of the Logicar line, where the need for regular re-registration has long become the talk of the town, there is a possibility of loss of recognition here too. Registering the Sherkhan 5 keychain is not difficult, just remember the simple procedure.

First of all, you need to remember that the entire set must be re-registered: at the beginning of the procedure, the memory of all key fobs previously recorded in the memory is erased. If a problem arose on the road, when you only have one key fob with you, upon returning home you should repeat the procedure, but with a complete set - otherwise, if the main key fob breaks, you will have to open the car with an emergency disarming of the system. On all registered key fobs with an LCD screen, you need to turn off the “Hands Free” function (by holding down button 1 for two seconds), and the system will be disarmed.

Programming the key fob is carried out in three stages:

Quickly turn the ignition on and off three times, after which the light alarm should flash once.
Turn the ignition back on, leaving it in this state.
With a pause of no more than 4 seconds, alternately press buttons 1 on all key fobs to be registered (no more than three).

The key fob registration mode will be exited automatically 4 seconds after the last press.

Re-registration is one of the most effective measures if the Magikar 5 key fob does not work. Only after making sure that there is no physical connection (that is, the key fob registration fails), you need to look for a problem in the system or change the key fob.

How to set 24 hours

In some cases, inexperienced car owners are faced with the problem of converting the clock time format. In most models, it is enough to perform a few simple manipulations to display the time on the display from 12-hour to 24-hour format. This option is more familiar and user-friendly. However, it will not be possible to set the clock on Sherkhan Magikar 5 this way, which is due to the lack of a 24-hour format in the settings.

To better understand the existing option for displaying hours and minutes, and also not to encounter various problems, you need to consider the following nuances:

The display will always show 1 of the modes next to the time: AM, PM. The first indicates the hours from midnight to noon, and the second from 12 noon to 12 midnight.
When setting the autostart timer, you need to be as careful as possible so that the engine turns on at the required time. To do this, check the time mode and the set date.
Some security system functions can only work if properly synchronized. To carry it out, you need to turn on the mode (AM or PM) corresponding to the current time.

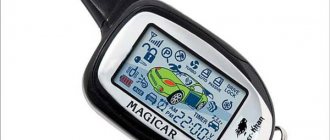

Sherkhan Magikar 2

This instruction is universal and is suitable for Scher Khan 3, 5, 8 remote controls.

Turn on the key fob programming mode by pressing for two seconds. electric buttons II and III. Login will be confirmed by the Pro9 picture.
To go to setting the time, press the I button once. The numbers should flash.
Key I changes the hours, and II changes the minutes.
Pressing 2 s of buttons II and III will exit programming.

It happens that the remote control stops working: it opens and closes the doors, but there are no symbols on the display. The key fob only shows the time. What to do in such a situation? Reboot the car alarm and re-register the remote control into the system memory.

How to set the turbo operating period

An engine with a turbine has many features that affect its operation. Such a device must not be stopped instantly after prolonged operation at high speeds. Because of this, the engine needs to idle for several minutes. This will help to quickly cool the turbine and avoid various negative consequences. For such purposes, the Scher-Khan Magicar 5 security system has a Turbo mode. By activating it, the car's engine will run for an additional 2 minutes after pressing the brake.

Program the Turbo mode in the following way:

The vehicle is placed at neutral speed.
Turn off the ignition. In this case, the engine must remain in working condition.
Get out of the car and close all the doors. As a result, the hazard warning lights will flash.
After this, the control panel sets the car to security.
Wait 2 minutes until the engine stops and the shock sensor starts working.
Then press button 2 for 2 seconds and complete the programming process.

To enable or disable Turbo mode, you must simultaneously press the combination of keys 3 and 4.
