Electric windows are very convenient devices that are controlled by a special button and make it possible to lower or raise the side windows without rotating the previously used handles. Unfortunately, this option is provided only in some modifications of the VAZ-2110 car. Therefore, in this article we will tell you how to install it yourself and ensure maximum comfort in controlling the side windows.
Selecting window regulators for installation on a VAZ-2110
If you want to install electric windows on your car, you will first need to choose the most reliable device that will serve for many years without causing any problems. On the modern market you can find the following options:
- traditional cable structures, which are relatively easy to install, but differ from others by not having a very long service life, wear out quickly;
- strip devices that are not very convenient to use;

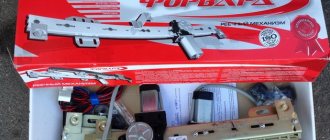

- rack and pinion window lifters, which are deservedly recognized as the most suitable and reliable in operation.
When choosing devices suitable for your car, pay attention to factors such as:
- the speed of raising and lowering the glass, which largely depends on the gear motor installed on the car;
- the ability to use the device in the cold season;
- noise level during product operation.
Taking into account all these factors, you will be able to choose window lifters that will not only work flawlessly, but also will not create any problems in specific operating conditions.
How to install and connect power windows on a VAZ-2110

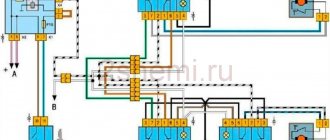

The most preferred devices are rack type, so we will describe the installation process as an example. The connection diagram for the window regulator on a VAZ-2110 car is as follows:
- remove the negative terminal from the car battery to stop the supply of voltage to the on-board power supply network;
- we take the wires that come standard with rack-and-pinion window lifts and make a kind of harness out of them that makes connection easy;
- remove the car mounting block, which will require unscrewing the self-tapping screw that secures the special latch;
- turn the block over and carefully install block Ш1 of the pre-prepared wiring harness into the corresponding connector;
- dismantle the door trim;
- we pull the wires to the electric window drive. To do this, you will need to carefully pass them through the holes in the door itself and the body pillar on the desired side.
After this, buttons or keys are installed that will be used to control the power windows. Depending on your desire, they can be attached either to the door trim of a VAZ-2110 car, or to an existing control panel. In the first case, you will need to use an additional wire, which will allow you to equip the key backlight.
electric windows
Have you noticed that the window regulator on a foreign car or VAZ 2110 does not work well and the glass slowly rises or falls? There may be several reasons for this problem, let's try to figure out how to speed up the operation of the ESP..
Why doesn't the window regulator work? There are many reasons for the malfunction, ranging from the banal freezing of windows to failure of the window lifter mechanisms. Do you know how to check the window regulator?
The power window buttons (ESP) on the VAZ of the tenth family are located on the tunnel, between the front seats. This location of the ESP control unit is not entirely suitable from the point of view of convenience (especially in winter, when the buttons are covered with clothing). One solution to the problem is to move the ESP buttons to the panel.
Normally, the electric windows (ESP) do not work until you turn on the ignition and this is not entirely convenient. It happens that the driver enters the store, but the passenger cannot open the window at this time because there is no key. You can connect an ESP without ignition in various ways, let's try to understand each of them.
VAZ window regulators of the tenth family, unfortunately, cannot boast of their reliability. Most often, if any of its elements fail, we replace the part with a new one, but in most cases the part can be repaired. Let's figure out how difficult it is to repair window regulators yourself.
Kalina power window buttons (ESP) have an attractive appearance and a convenient shape. This is probably why many VAZ 2110 owners decide to replace the standard ESP buttons with Kalinovsky ones
How difficult is it to make such a substitution?
One day in the summer I noticed how a VAZ 2110 drove into the parking lot and parked. The driver calmly gets out and leaves all the windows open
Just as I wanted to tell him about this, he clicks the key fob and miraculously the windows close automatically when the car is armed. Later I found out that the power window control module is capable of such magic.
Most cars of the tenth family do not have air conditioning, so in the hot summer the side windows are almost always open. That is why for our cars, electric windows (ESP) are simply not a replaceable thing in the summer. How to choose the right ESP for a VAZ 2110?

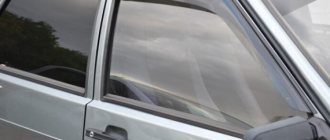

In the VAZ 2110, the front windows do not go down completely. When the window lifter is fully lowered, the glass remains protruding from the door by about 5 cm. This article will specifically focus on modifying the window regulators so that the glass goes lower.
I don’t think it’s worth talking about the advantages of electric windows (hereinafter referred to as ESP) over manual windows, the difference is obvious. If your car is not equipped with an ESP from the factory, then you can install an ESP in the VAZ 2110 yourself. How to do this is shown in the photo report.
You've probably noticed that on almost all foreign cars the power window buttons are duplicated on each car door. To connect additional ESP buttons in the doors, you need to run an additional three wires into each door.
The location of the power window buttons on the VAZ 2110 is not convenient. You have to look for them under winter clothes. It is also difficult to reach the buttons if there is an armrest that does not tip back. One solution to this problem is to move the power window buttons from the central tunnel to the driver's door.
Illuminated power window buttons VAZ 2110
I decided to write an article intended for cars equipped with electric windows. I got fed up with the green color of the backlight - I decided to change it, and during long trips the unit itself began to get very hot due to the lamps. The choice fell towards LEDs.
Installation process of electric windows
In addition, it is necessary to install the power windows themselves. The procedure is performed in the following sequence:
- temporarily remove the glass seal located on the inside of the door;
- remove the glass, and then dismantle the window regulator fastening mechanism;
- we install devices that will operate from an electric drive;
- connect the negative terminal to the battery and check the operation of the new window regulator;
- We install the glass in place and trim the door.
Features of connecting power windows
Unlike conventional mechanical devices, power windows are not equipped with traditional gear reducers, but with a special drum. The shaft of a DC electric motor is inserted into its hole located in the center. In this case, the motor is only a component of the gearmotor, on which, as we found out earlier, the speed and quality of raising and lowering the windows depends.
Before installing a new power window, you must select the correct device based on its technical characteristics, and also make sure that the product is in a fully folded state. Otherwise, you are unlikely to be able to install the product efficiently and ensure its flawless operation after connecting it to the vehicle’s on-board network.
Causes of malfunction
So, we gradually approached the issue of malfunctions. What if the window regulator cannot go down or up? Before you remove the window regulator, disassemble and repair it in your car, let's look at the main reasons. If the rear or front windows do not work, the reason may be either electrical or mechanical.
Detailed design of the EP system
Electrical faults
First of all, if the window regulator has stopped working, it is necessary to diagnose the safety element responsible for the functionality of the system. If you realize that the power window is not working due to a fuse, then you just need to replace it. But if the fuse is working, then you will need to measure the voltage at the electric motor terminals. This task can be accomplished using a regular 12-volt lamp or using a tester.
We recommend: How to check the vacuum brake booster?
If you find that the driver's window or any other door does not work due to voltage, then you need to further check:
- wiring;
- relay;
- system control unit.
Sometimes a car owner thinks that the window regulator is broken if, after opening the window, it automatically begins to close until the key is turned in the ignition. As a rule, in this case the problem lies in the contacts, which should be cleaned. Much less often, but it still happens that repair of electric windows includes replacing or repairing a button.
Mechanical defects of the mechanism
If, after measuring the voltage, you realize that there is current in the system, but it does not go down or the window regulator does not work at all, most likely the problem is mechanical. As a rule, in this case, something is interfering with the device, so you will have to disassemble the door and look for the reason. Much less often, the reason lies in a failed electric motor (the author of the video is the channel In Sandro’s Garage).
How to raise the glass if the electric seal is broken - there are several options:
- Purchase a window regulator repair kit and repair the device, after which you can fully use the system.
- Try to grab the glass on both sides with your hands and pull it up. If the glass falls after being lifted, you will have to disassemble the door and place a support of the appropriate size under it.
- If you can’t lift the glass with your hands, you can take a fishing hook on a fishing line and lower it into the door card. You need to try to pry the glass and lift it.
